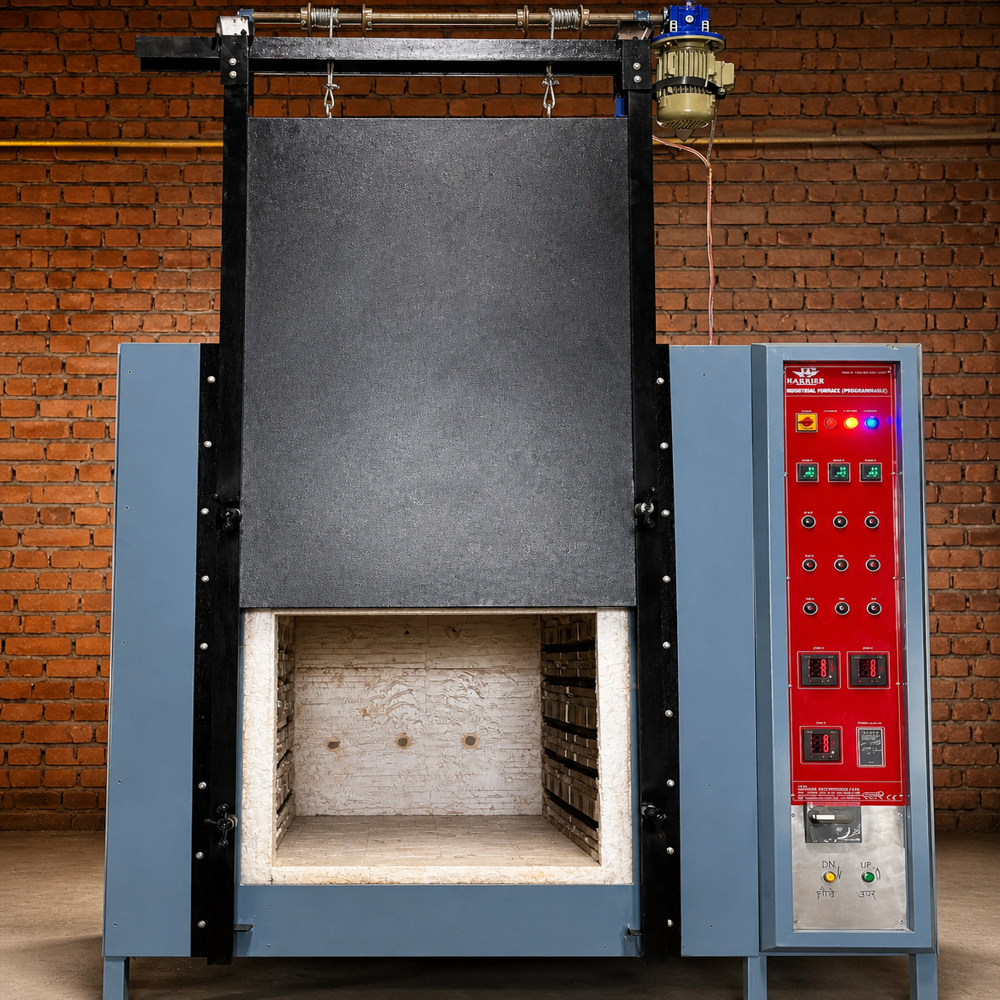

Industrial Furnace

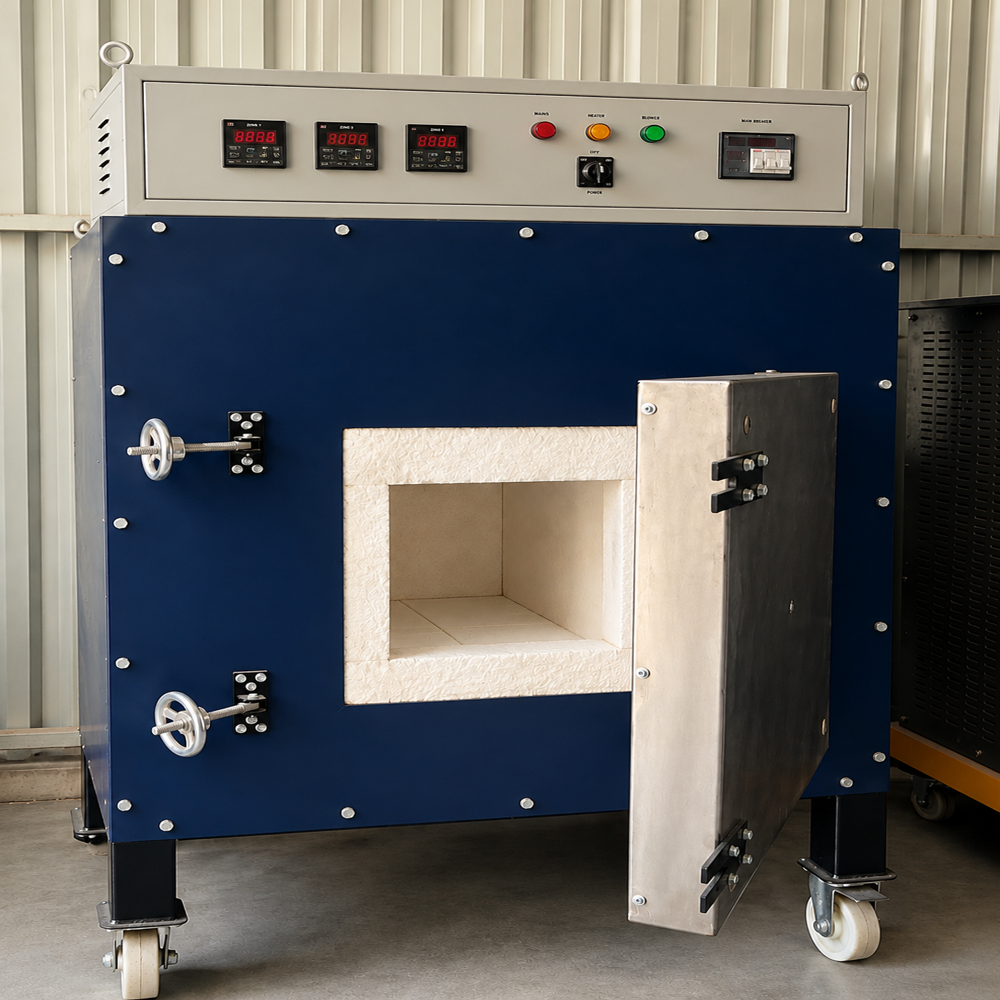

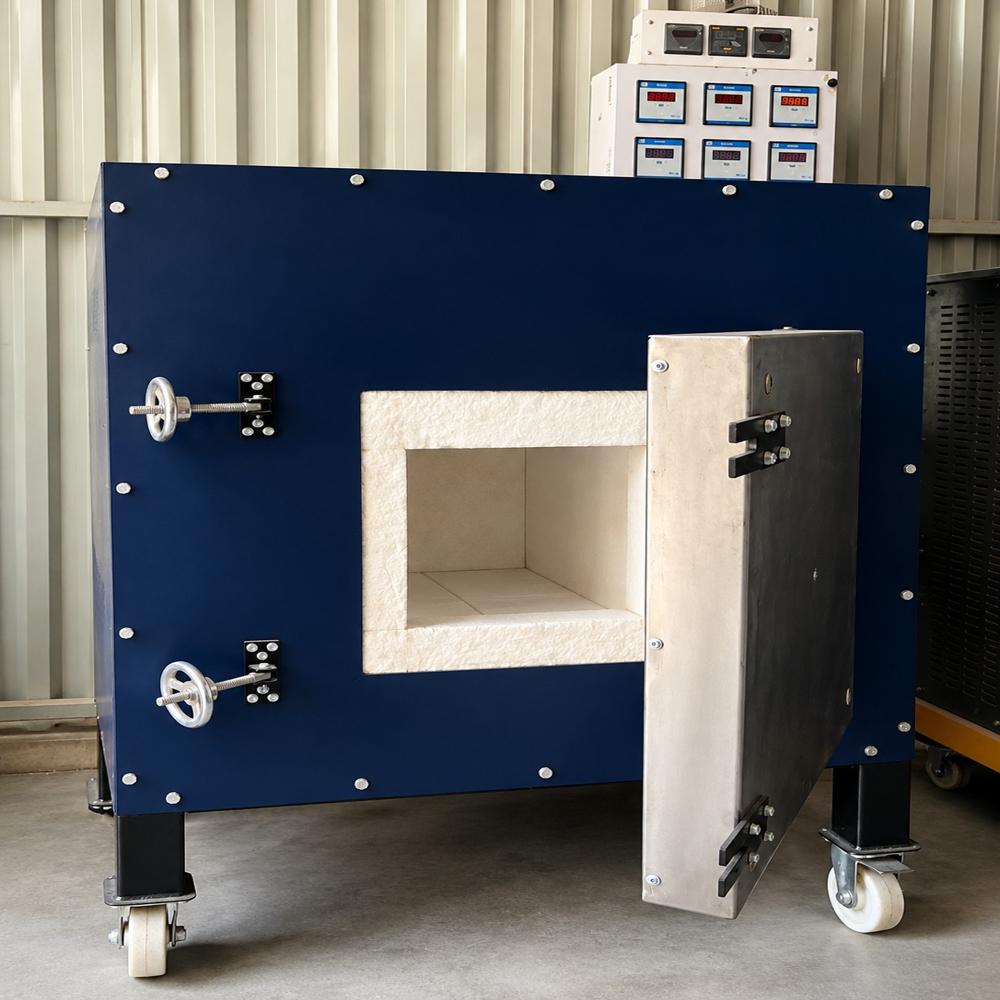

High Temp Muffle Furnace:-

Make: HE (NSIC REGD, ISO 9001 2015/14001-2015/13485-2016/FDA/ GMP/CE CERTIFIED)

Application: -

1600C High Temp Muffle Furnace (Box Type Resistance Furnace) Mainly Provides High Temperature Heat Treatment Environment for Industrial Colleges, Research Institutes, Factories and Other Industrial Laboratories, And Is Applied to New Materials Such as Metal Materials, Ceramic Materials, Nano Materials, And Semiconductor Materials.

Features:-

  The Furnace Material Is Vacuum-Formed Alumina Ceramic Fiber Material and Does Not Drop Powder In High Temperature; Heat Capacity Is Small, Energy Saving Above 50%.

  The Heating Element Is Made of High-Quality Silicon Molybdenum Rod, Which Can Bear Large Load, Stable and Long Service Life; The Silicon Molybdenum Rod Is Evenly Arranged on Both Sides of the Furnace, And the Temperature Field Uniformity Is Good.

  High Temperature Control Design, Fast Heating Rate, Good Temperature Uniformity, Can Be Raised To 1600 Within 300 Minutes, Safe and Efficient.

  High Temperature Control Accuracy 1 C.

  Using Intelligent PID Temperature Control Instrument, with 1 Program Function, Can Set The Temperature Rise Curve, Can Be Programmed 16 Segments

  Electronic Components Are Used Autonics, Schneider, L & T Products, Safe and Reliable

  The Machine Will Send Out an Alarm Signal to the Over-Temperature During the Working Process, And Automatically Complete the Protection Action.

  When The Instrument Program Is Set, Just Press the Run Button and The Next Work Will Be Completed Automatically.

Product Overview: -

HE-HMF 1600 Series Products Are Mainly For The Daily Application Development Of The Laboratory, High-Quality Furnace Materials And Stable Temperature Control System To Ensure The Reliability Of The Experimental Data; The Product Uses High-Purity Alumina Material As The Furnace Material, And The High-Quality Silicon Molybdenum Rod Is Used For Heating Element, And The Temperature Controller Uses Microprocessor PID Control Module To Achieve Precise Temperature Control And Constant Temperature Requirements.

Specification: -

Important Note:
Product: MoSi (Molybdenum Di silicide) Heating Element

The MoS i heating element is extremely fragile and must be handled with utmost care. No warranty is applicable to this product, and Harrier Enterprises shall not be held responsible for any damage or breakage occurring during transportation, installation, operation, or thermal cycling.

Please ensure that all specifications and parameters are confirmed prior to placing the order. Once the Purchase Order (PO) is received, no modifications or returns will be accepted.

It is strongly recommended to ensure gradual heating and cooling cycles and proper installation to achieve optimal performance and longer service life.
