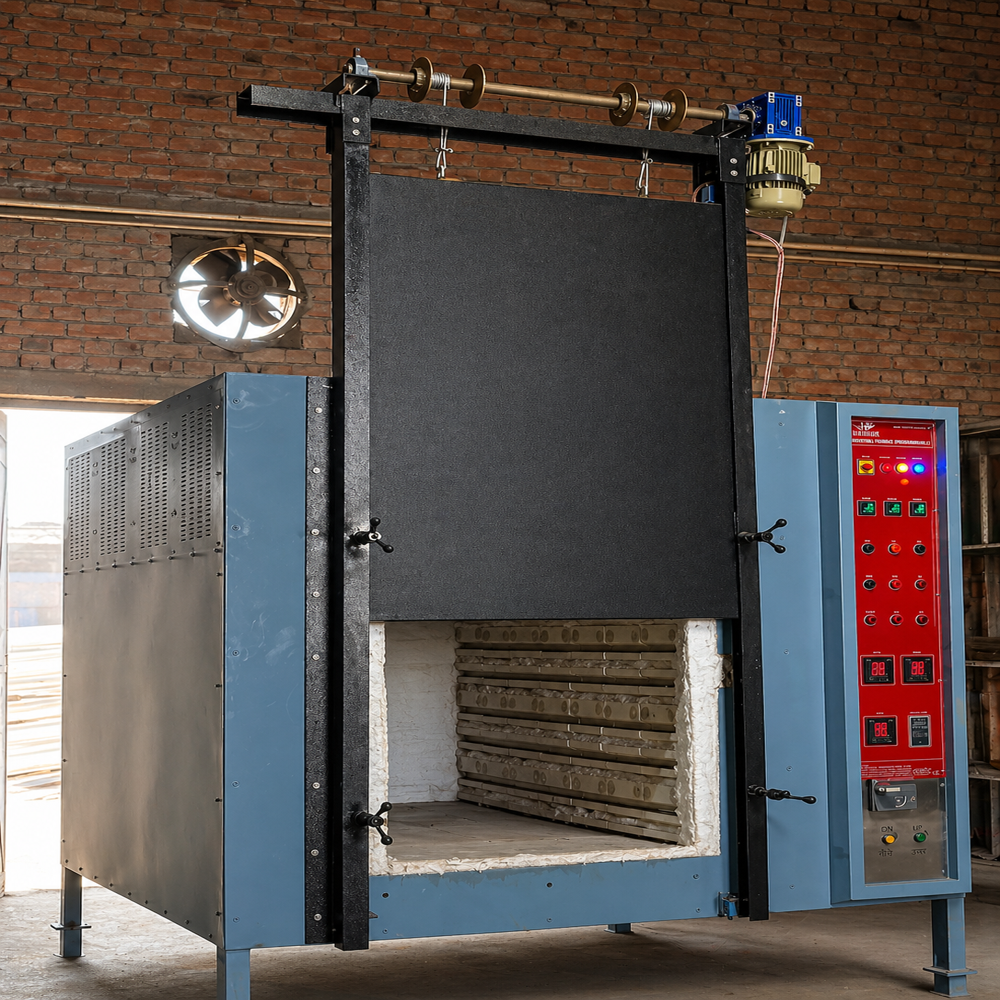

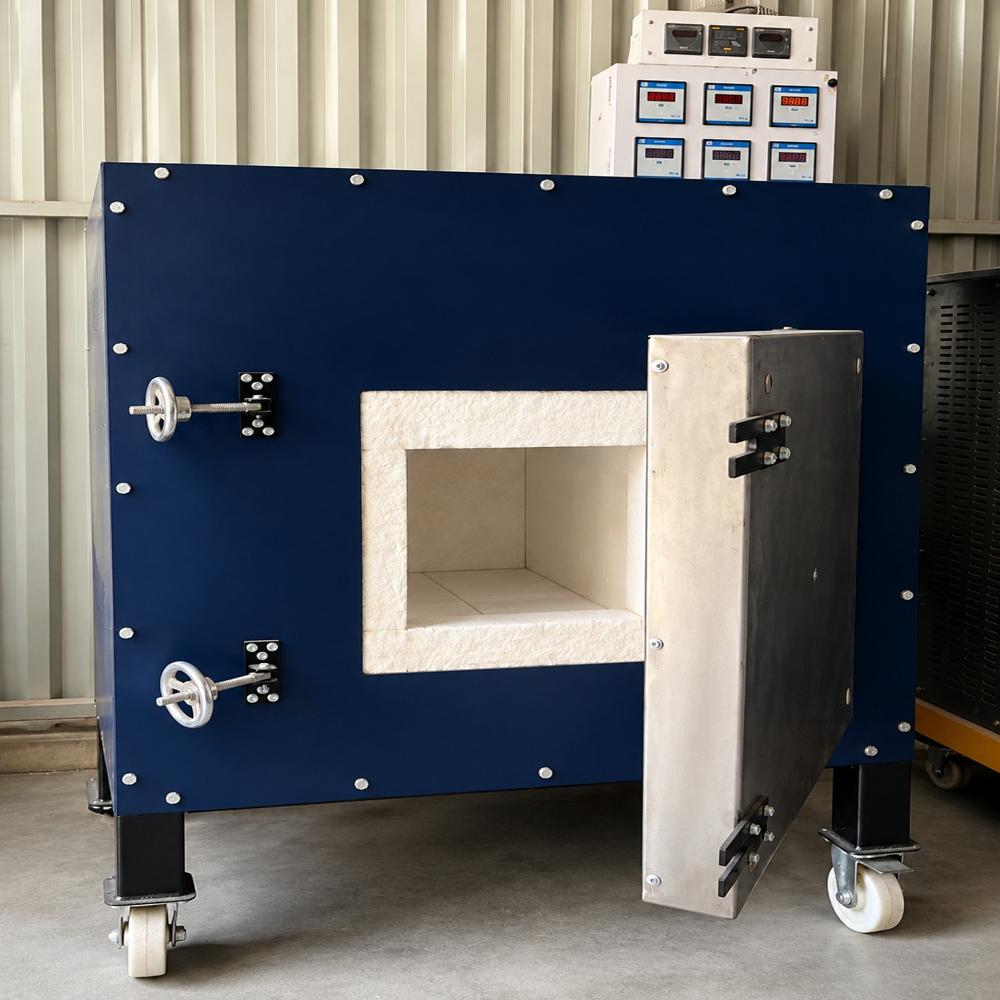

Industrial Furnaces

Industrial Muffle Furnace (Programmable):-

Make: HE (NSIC REGD, ISO 9001 2015/14001-2015/13485-2016/FDA/ GMP/CE CERTIFIED)

Application: -

1150C Industrial Muffle Furnace (Box Type Resistance Furnace) Mainly Provides High Temperature Heat Treatment Environment for Industrial Colleges, Research Institutes, Factories and Other Industrial Laboratories, And Is Applied to New Materials Such as Metal Materials, Ceramic Materials, Nano Materials, And Semiconductor Materials.

Features:-

  The Furnace Material Is Vacuum-Formed Alumina Ceramic Fiber Material and Does Not Drop Powder in High Temperature; Heat Capacity Is Small, Energy Saving Above 50%.

  The Heating Element Is Made of High-Quality Kanthal A-1 Grade as Heating Element, Which Can Bear Low Load, Stable and Long Service Life; The Kanthal APM Grade Is Evenly Arranged on Both Sides of The Furnace, And the Temperature Field Uniformity Is Good.

  The Heating Rate Is Fast, From Room Temperature To 1000 Degrees, Generally Takes 120 Minutes.

  High Precision of Temperature Accuracy 1C.

  PID automatic control via SSR power control with phase angle fired, current limiting resistor.

  1 programmable x 16 segments for precise control of heating rate, cooling rate and dwell time.

  Built in PID Auto-Tune function with overheating & broken thermocouple broken protection for this Muffle Furnace 1400 type.

  Over temperature protection and alarm allows for operation without attendant

  Electronic Components Are Used Such as Autonics / Schneider / L&T Brand, its Safe and Reliable.

  The Machine Will Send Out an Alarm Signal to The Over-Temperature During the Working Process, And Automatically Complete the Protection Action.

  When The Instrument Program Is Set, Just Press the Run Button and The Next Work Will Be Completed Automatically.

Product Overview: -

HE-MF -1150 Series Products Are Mainly For The Daily Application Development of The Laboratory, High-Quality Furnace Materials And Stable Temperature Control System To Ensure The Reliability of The Experiment; The Product Uses Light weight ceramic Fiber wool insulation (instead of Brick insulation) As The Furnace Material, And The Kanthal A-1 Is Used For Heating Element, And The Temperature Controller Uses Microprocessor PID Control Module To Achieve Precise Temperature Control And Constant Temperature Requirements

Specification:-
