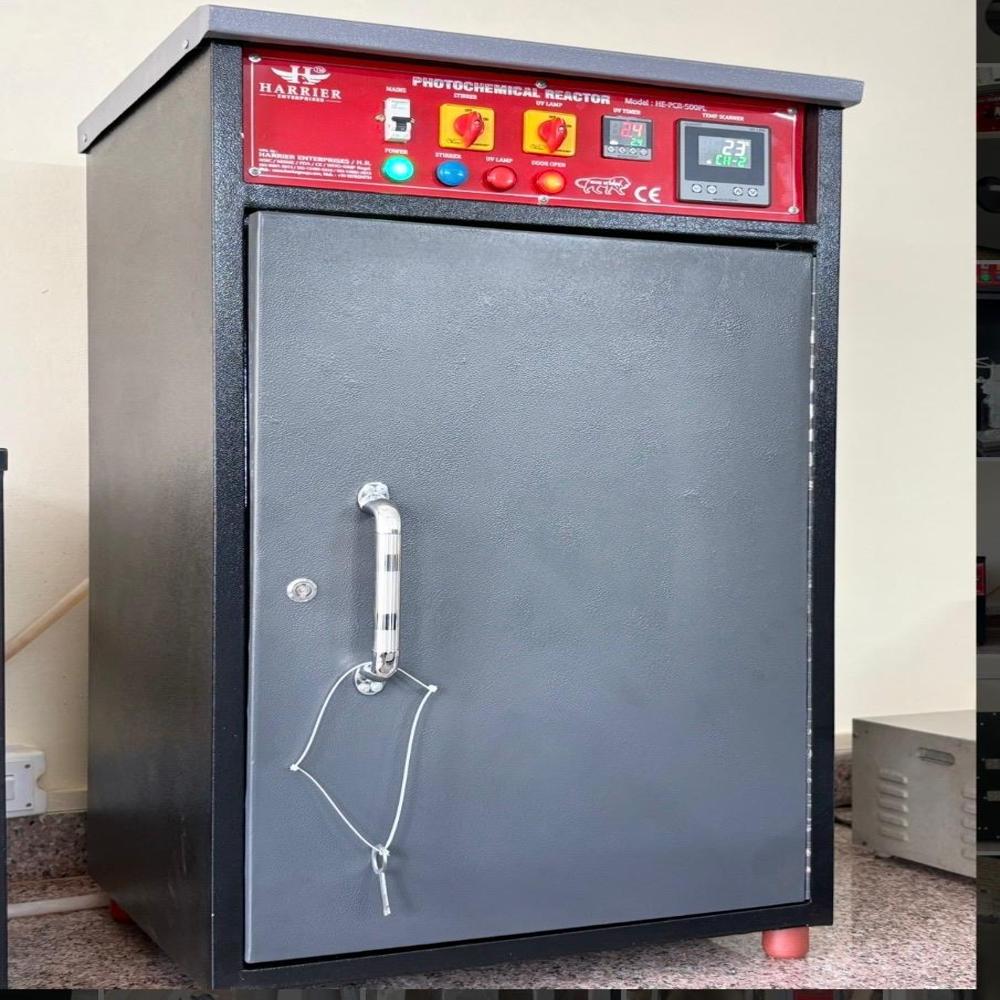

Photochemical Rector

Description

Photocatalytic Reactor

Photo catalytic Reactor with triple jacketed with 3 port to insert catalyst, Sample draw and one for additional use like temperature sensor etc.

Outer jacketed made of borosilicate glass

extra cooling jacket for water circulator with two port inlet and outlet port made of quartz

inner jacketed quartz immersion well

Capacity 100 ml, also we have different capacity from 100 ml to 5000 ml

Make: - Harrier Enterprises

UV Lamp specially designed for photocatalytic Reactor

Different wattege of lamp available such as,250,450 watts, you can chose any one or all, the price mentioned is for one lamp

Power Supply for UV Lamp source for 250,450 watts

Electronic Ballast controller Included DigitalTemperature controller

temperature  sensor and safety device.

Power supply will be used separate for each lamp, you need to buy Lamp and power supply together. But if you need to change lamp if not working then you can buy only lamp not powersupply.

Automatic on/off UV Lamp Timer (Max capacity of timer is 9999 minutes) Inbuilt 2 Electrical Connection (16 Amps ports) Silicon. Safety LED s indication

Xenon Lamp 300 watt and Power Supply

Outer Metal Shell (Safety Cabinet)

         Safety Cabinet

         Digital temperature display (@ four sample point which is Reaction temperature, Cabinet chamber temperature, Water inlet and outlet temperature)

        Digital Volt meter
Clamp based in-build reactor Holding Stand Cooling Exhaust Fan

        LED panel Lamp for cabinet (Automatic Switching) Automatic UV light or Rays protection system

        UV light protected Goggles
Automatic on/off UV Lamp Timer (Max capacity of timer is 9999 minutes)

        Inbuilt 2 Electrical Connection (16 Amps ports)
Silicon tubing (ID 10mm, OD 14mm) for water inlet and outlet.

        Safety LEDs indication system
Hydraulic Fittings for Water Circulation (Inlet & Outlet)

Magnetic Stirrer

Specialy designed for Photo-catalytic Reactor

Digital Speed Display,

Digital Timer provided

Speed variable upto 1600 RPM

 Chiller Circulator
