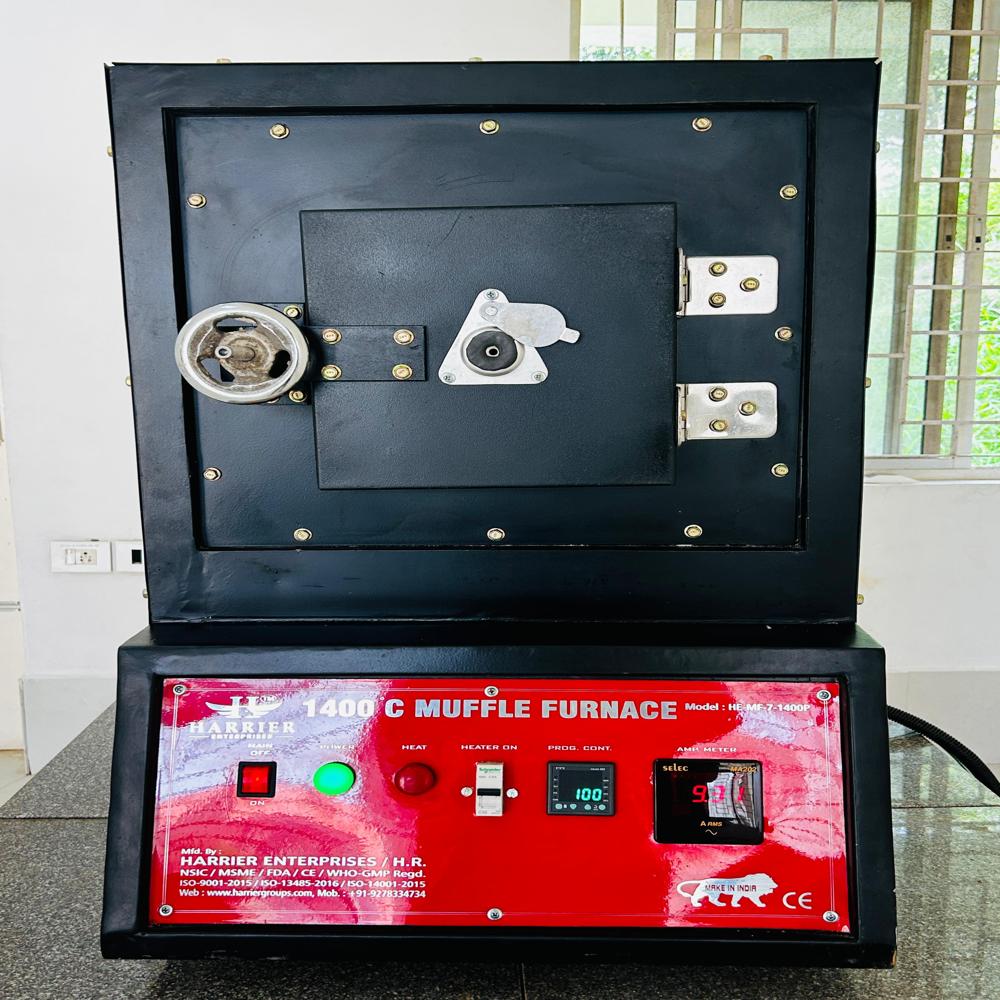

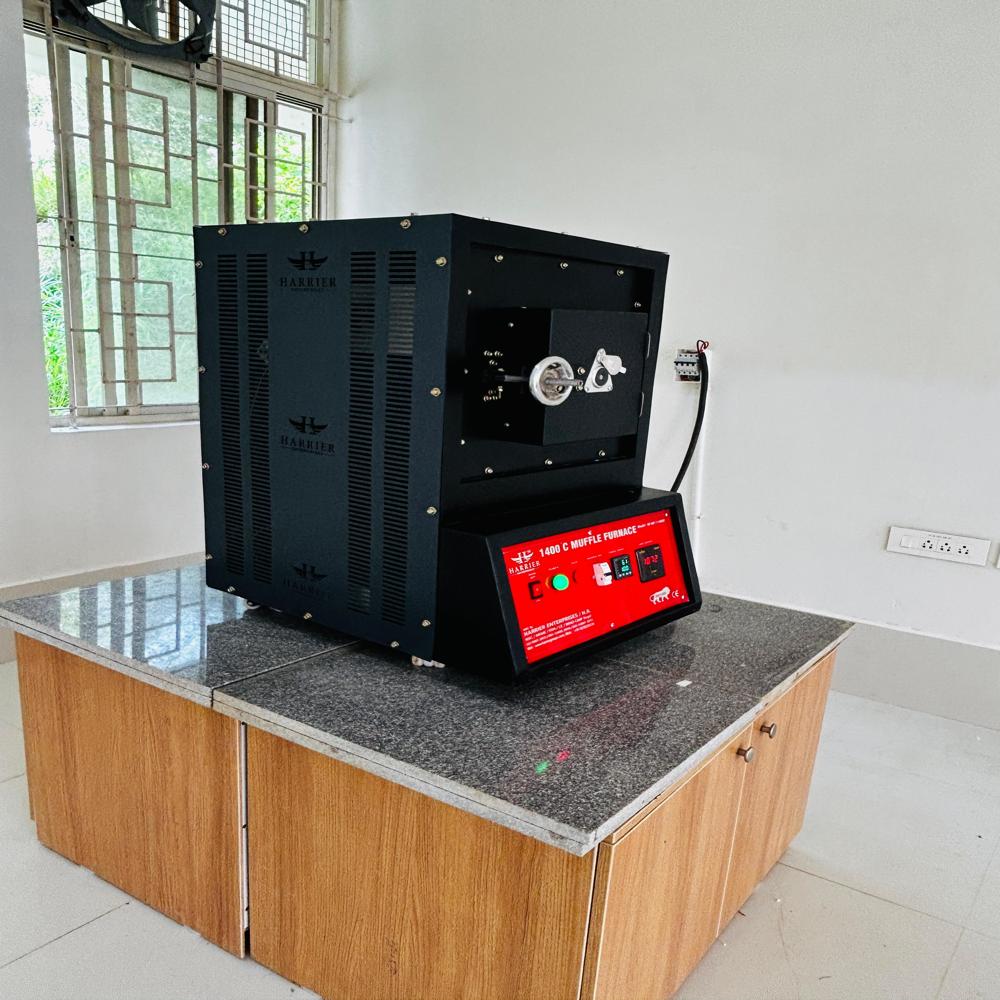

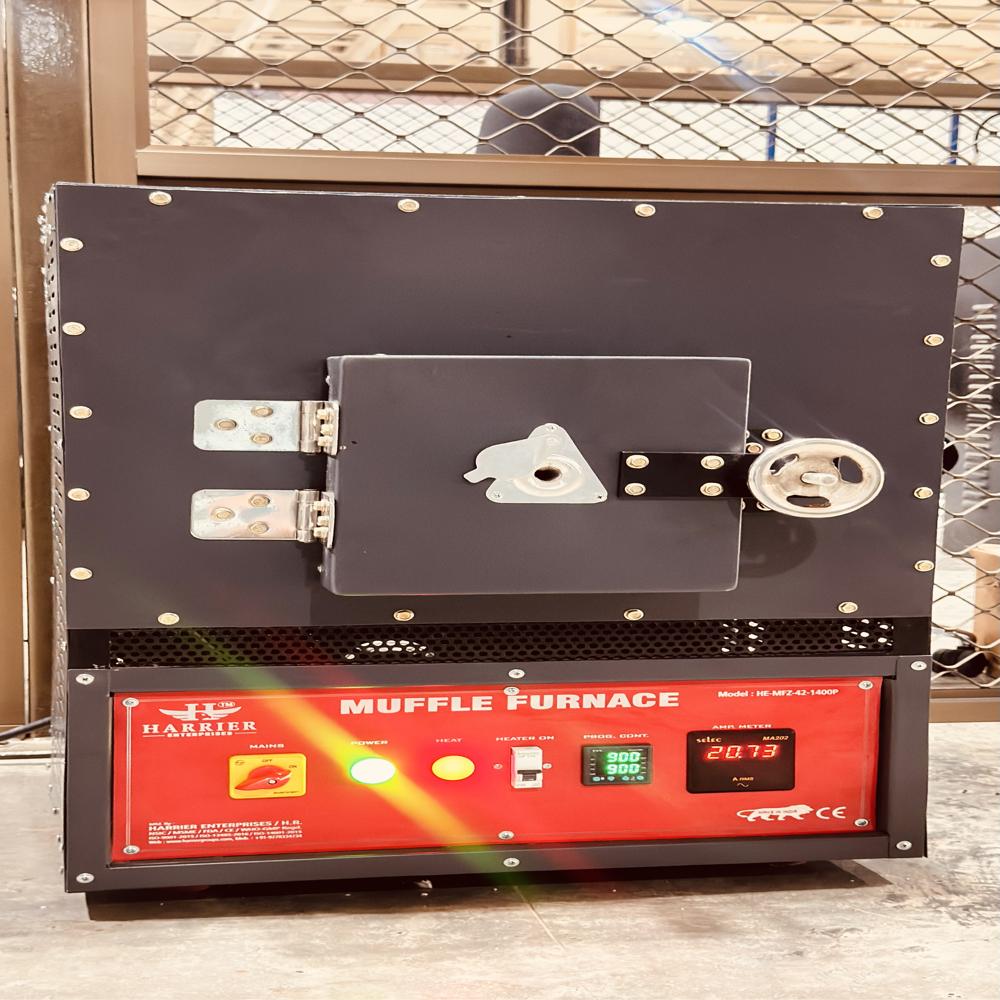

High Temperature Muffle Furnace
275700.0 INR/Number
Product Details:
- Feature Digital temperature controller, energy efficient, corrosion resistant, programmable settings, rapid heating
- Rating High Temperature, up to 1400C
- Condition New
- Type Laboratory Muffle Furnace
- Usage Ashing, sintering, heat treatment, material testing
- Power 2.5 to 4 KW (varies with model)
- Voltage 230 V AC, Single Phase
- Click to View more
X
High Temperature Muffle Furnace Price And Quantity
- 1 Number
- 275700.0 INR/Number
High Temperature Muffle Furnace Product Specifications
- 5 to 10 liters (depending on model)
- High Temperature, up to 1400C
- Approx. 22 x 18 x 24 inches (LxWxH)
- Medium (exact internal chamber size may vary: approx. 6 x 6 x 12 inches)
- Approx. 45 to 80 kg (varies with model)
- Laboratory, Research Labs, Material Testing, Ceramics
- Electric
- 230 V AC, Single Phase
- Ashing, sintering, heat treatment, material testing
- Digital temperature controller, energy efficient, corrosion resistant, programmable settings, rapid heating
- New
- Laboratory Muffle Furnace
- 2.5 to 4 KW (varies with model)
- Ceramic refractory
- Over-temperature cut-off, door safety switch
- Digital LED Display
- Exhaust port for fume release
- Front-opening, swing type
- 5C to 40C
- 1400C
- Kanthal A1 or MoSi2 (model-specific)
- High quality ceramic fiber insulation
- Fast cooling design
- Powder-coated MS (Mild Steel) body
- PID Digital Controller
- 50 Hz
- 1C
Product Description
|
High Temp. Muffle Furnace:- Make: HE (NSIC REGD, ISO 9001- 2015/13485-2016/FDA/GMP/CE CERTIFIED)
Application: -
1200C High Temp. Muffle Furnace (Box Type Resistance Furnace) Mainly Provides High Temperature Heat Treatment Environment for Industrial Colleges, Research Institutes, Factories and Other Industrial Laboratories, And Is Applied to New Materials Such as Metal Materials, Ceramic Materials, Nano Materials, And Semiconductor Materials.
Features: -
The Furnace Material Is Vacuum-Formed Alumina Ceramic Fiber Material and Does Not Drop Powder in High Temperature; Heat Capacity Is Small, Energy Saving Above 50%.
The Heating Element Is Made of High-Quality Silicon Carbide Rod, Which Can Bear Large Load, Stable and Long Service Life; The Silicon Carbide Rod Is Evenly Arranged on Both Sides of The Furnace, And the Temperature Field Uniformity Is Good.
The Heating Rate Is Fast, generally 1-5/Min to Be Set Freely.
High Precision of Temperature Accuracy 1C.
Using Intelligent PID Temperature Control Instrument, with 1 Program Function, Can Set the Temperature Rise Curve, Can Be Programmed 16 Segments.
Electronic Components Are Used Such as Autonics / Schneider / L&T Brand, Its Safe and Reliable.
The Machine Will Send Out an Alarm Signal to The Over-Temperature During the Working Process, And Automatically Complete the Protection Action.
When the Instrument Program Is Set, Just Press the Run Button and The Next Work Will Be Completed Automatically.
Product Overview: -
HE-MF -190-1200 Series Products Are Mainly for The Daily Application Development of The Laboratory, High-Quality Furnace Materials and Stable Temperature Control System to Ensure the Reliability of The Experimental Data; The Product Uses High-Purity Alumina Material as The Furnace Material, And the High-Quality Silicon Carbide Rod Is Used for Heating Element, And Programmable Temperature Controller PID Module to Achieve Precise Temperature Control and Constant Temperature Requirements.
Specification: -
|
