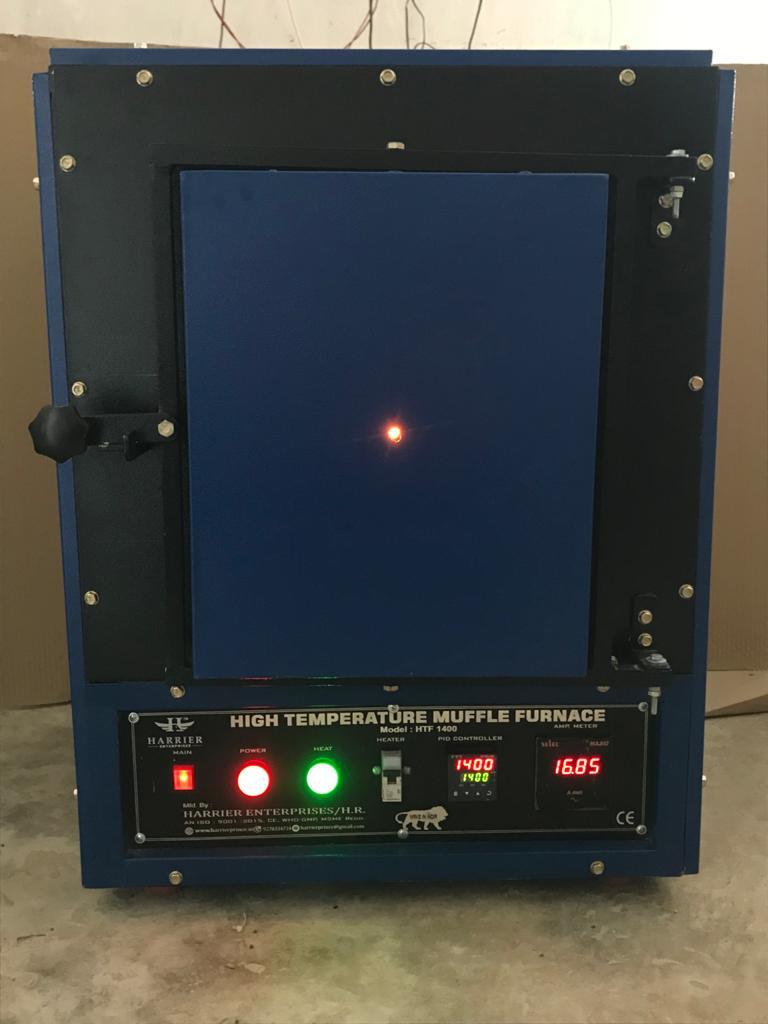

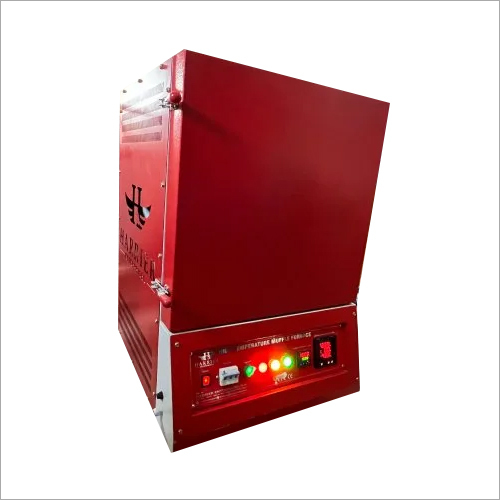

1400C Atmosphere Box Furnace
222000.0 INR/Unit
Product Details:
- Feature Gas-tight design, programmable temperature controller, uniform temperature distribution
- Rating 1400C Maximum Operating Temperature
- Condition New
- Type Atmosphere Box Furnace
- Usage Laboratory/Industrial
- Power 6-12 kW (model dependent)
- Voltage 220/380V, 50/60Hz
- Click to View more
X
1400C Atmosphere Box Furnace Price And Quantity
- 1 Unit
- 222000.0 INR/Unit
1400C Atmosphere Box Furnace Product Specifications
- Atmosphere Box Furnace
- white,blue
- Approx. 70-150 kg depending on model
- Heat treatment, material research, sintering, annealing, metallurgy, ceramics, and research labs
- Laboratory/Industrial
- 220/380V, 50/60Hz
- 1400C Maximum Operating Temperature
- Standard (customization available)
- 6-12 kW (model dependent)
- 5-30 liters (based on model)
- Electric
- New
- Chamber size as per model (commonly 200 200 200 mm and more)
- Gas-tight design, programmable temperature controller, uniform temperature distribution
- Gas inlet and outlet nozzles
- Data logger, remote temperature monitoring, vacuum purge system
- High-grade alumina refractory bricks
- PID programmable (digital display)
- Dual display for set and actual temperature
- Benchtop or floor-mount models available
- High-density ceramic fiber
- Natural or optional blower-assisted
- Over-temperature protection, leakage protection, door interlock switch
- 1C
- Provision for inert/reducing gas (N2, Ar, H2, etc.)
- High-quality MoSi2 rods
- 0-20C/min adjustable
1400C Atmosphere Box Furnace Trade Information
- 25 Unit Per Month
- 7 Days
Product Description
In order to generate reaction heat or to provide heat for a process, 1400c atmosphere box furnace can be used as reactors. Different furnace designs use various fuel kinds, heating requirements, and combustion air introduction methods. It is an industrial appliance that generates heat either by burning fuel in the presence of air or oxygen or by utilizing electrical energy. 1400c atmosphere box furnace uses the house's air to mix with the natural gas coming from the burner and facilitate combustion. For the purpose of burning, this air is pulled into the furnace through a grill. As a result, the rest of the house starts to lose air.
Precision and Versatility for Research and Industry
Designed for laboratory and industrial heat treatments, this furnace delivers stable, programmable thermal environments up to 1400C. Inert and reducing atmosphere options allow sensitive material processing, while programmable control and digital displays ensure accuracy for research and production needs.
Superior Uniformity and Safety Features
Achieve uniform heating with advanced MoSi2 rod elements and high-grade alumina refractory brick chambers. Reliable over-temperature, leakage protection, and a door interlock system keep operations secure, letting users focus on experiments or production with confidence.
Customizable Solutions for Varied Applications
Available in benchtop or floor-mount variants, and customizable in chamber size and configuration, this furnace accommodates research, metallurgy, ceramic sintering, and more. Optional accessories-such as data loggers, remote temperature monitoring, and vacuum purge-expand its capabilities.
FAQ's of 1400C Atmosphere Box Furnace:
Q: How does the temperature uniformity of 1C benefit laboratory experiments or industrial processes?
A: Precise temperature uniformity ensures consistent results across the entire chamber, which is crucial for reproducibility in scientific experiments and quality assurance in industrial applications. This minimizes variation, particularly important for sensitive materials or processes like sintering and annealing.Q: What types of gases can be used for atmosphere control in the furnace?
A: The furnace is designed to allow the introduction of inert gases (such as nitrogen and argon) or reducing gases (such as hydrogen) through dedicated inlet and outlet nozzles, enabling specialized heat treatment under controlled environments.Q: When should the optional blower-assisted cooling system be used?
A: Blower-assisted cooling is recommended when rapid cooling is required to accelerate turnaround or when thermal cycling is necessary. It is optional, as the furnace also supports natural cooling for standard operations.Q: Where is this atmosphere box furnace typically installed?
A: The furnace can be mounted on a benchtop or floor, depending on the model and user requirements. It is suitable for laboratories, research institutes, material science facilities, metallurgy plants, and ceramics processing units.Q: What safety mechanisms are included with the furnace?
A: It is equipped with over-temperature protection, leakage protection, and a door interlock switch to ensure user and equipment safety during high-temperature operations.Q: How is the furnace controlled and monitored during operation?
A: A digital PID programmable controller with dual displays provides easy programming and real-time monitoring of both set and actual temperatures. Optional data logging and remote monitoring accessories are also available.Q: What are the main benefits of the high-quality MoSi2 heating elements and alumina brick chamber?
A: MoSi2 heating elements offer excellent longevity and high-temperature stability, while alumina refractory bricks ensure thermal efficiency and durability, collectively supporting uniform heating and prolonged furnace life.Tell us about your requirement
